Spec-Pave™ creates a permeable surface that facilitates effective stormwater management.

Schedule a Consultation

Spec-Pave™ Your Best Option

Engineered Energy Compliance

Achieve a high-performance, energy-code-compliant envelope in Climate Zones 1-5 without the added material and labor costs of separate insulation systems.

Simplified Wall Assembly

Reduce the number of components and trades on your project with a partially or fully grouted pre-insulated system that arrives at the job site ready for immediate installation.

Versatile Interior Prep

Designed to perform as a standalone single-wythe wall or to work in tandem with interior furring and wallboard for flexible, conditioned-space finishes.
Spec-Thermal HI-R are pre-insulated partially or fully grouted masonry wall systems for superior thermal performance. These units are a cost-effective option for masonry walls that comply with Energy Code. Applications: Single wythe walls for conditioned spaces in Climate Zones 1-5. Single wythe walls for conditioned spaces with furring/wallboard and/or interior or exterior insulation.

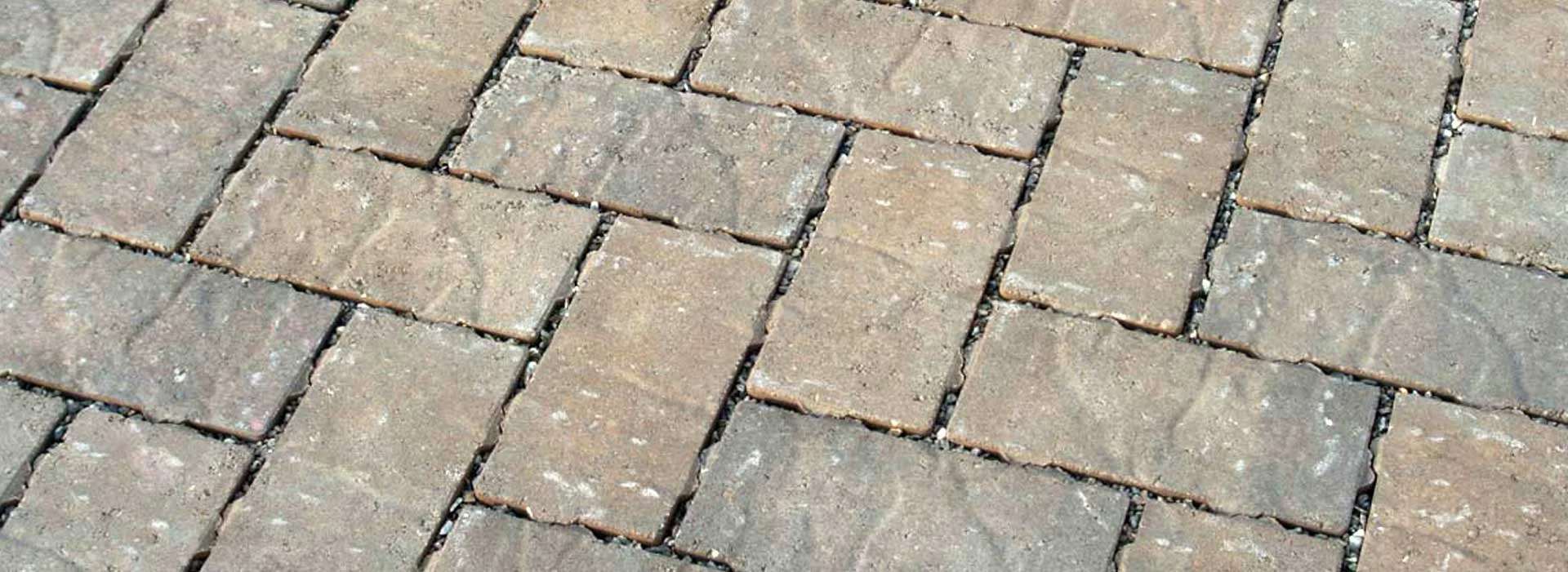

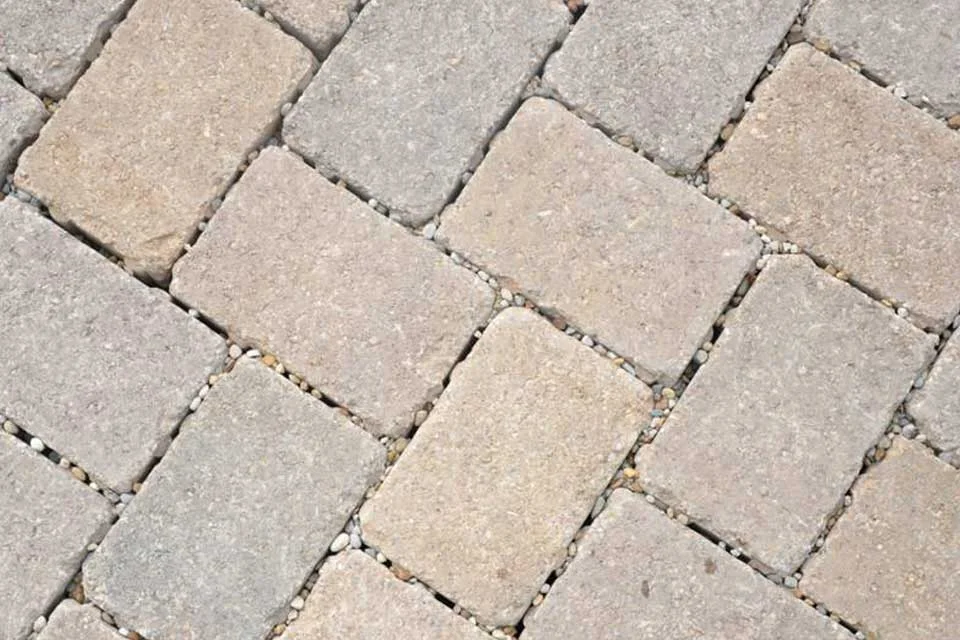

The Spec-Pave™ system creates a permeable surface for rapid infiltration and storage of storm water, facilitating effective stormwater management. Spec-Pave™ is both ADA compliant and has 10% open surface area for rapid infiltration of storm water. Its strength and durability is designed to fit a wide range of applications.

Our 100MM thick version, Spec-Pave™ 100, complies with ICPI (Interlocking Concrete Pavement Institute) requirements for an Aspect Ratio for vehicular traffic loadings. Spec-Pave pavers are perfect for: parking lots, driveways, overflow parking areas, revetments, boat ramps, bike paths, sidewalks and pedestrian areas, and light traffic roadways.

Potential LEED Credits:

LEED Credit

Credit Description

Points

Potential Permeable Paver Credit Contribution

Sustainable SitesSS Credit 6.1

Stormwater Design: Quantity Control

1

Use SPEC- PAVE™ permeable pavers to reduce impervious surfaces to reduce runoff

Sustainable SitesSS Credit 6.2

Stormwater Design: Quality Control

1

Use SPEC-PAVE ™ permeable pavers to allow storm water to seep through the paved surface into the stone sub-base where it is naturally cleaned.

Sustainable SitesSS Credit 7.1

Heat Island Effect: Non-Roof

1

Request pavers manufactured with appropriate cements and aggregates to meet the SRI requirements of this provision.

Materials & ResourcesMR Credit 4.1 & 4.2

Recycled Content: 10%/20% (post-consumer + 1/2 preconsumer)

1/1

Concrete products can be manufactured with recycled materials. Check with your local producer to see what recycled content products they offer.

Materials & ResourcesMR Credit 5.1 & 5.2

Regional Materials: 10%/20% Extracted, Processed & Manufactured Regionally

1/1

Concrete Products are typically made by local production facilities using sand, aggregates, water and cement from local sources. Your manufacturer can confirm the percentage oflocal origin of its products.

Innovation & DesignID Credits 1

Innovation in Design

1/5

Use concrete pavers with reduced cement content; use high albedo pavers to reduce lighting requirements in low light conditions

Spec-Pave™: A Best Management Practice for Storm Water management.

Advantages:

  • Reduces total suspended solids (TSS),nutrients and metals.

  • ADA compliant

  • Can be mechanically installed for construction efficiency

  • Low-maintenance requirements; simply periodically vacuum clean
